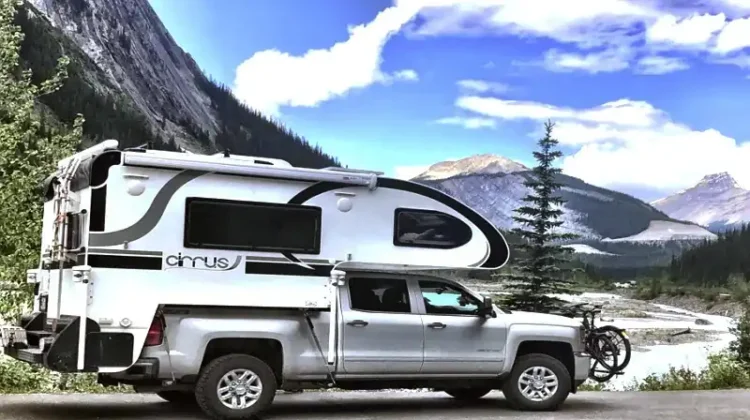

Can A Truck Camper Pull A Travel Trailer?
Key Takeaways
-
- Core Feasibility & Weight Management:
- Dual Capacity Requirements: A truck camper can tow a travel trailer, but the setup requires careful calculations to ensure the combined load stays within both the truck’s maximum payload capacity and its maximum tow rating.
- Payload as the Primary Limit: The weight of the truck camper, passengers, gear, towing hardware, and the trailer’s tongue weight all count directly against the truck’s Gross Vehicle Weight Rating (GVWR).
- Planning Sequence: To avoid buying inadequate equipment, buyers should select and calculate the total wet/loaded weight of both the truck camper and travel trailer before purchasing the truck.
- Towing Hardware & Overhang Considerations:
- Hitch Classes: Most factory pickup trucks come with a Class 3 hitch (up to 8,000 lbs trailer weight / 800 lbs tongue weight). Heavier travel trailers demand Class 4 (10,000–12,000 lbs) or Class 5 (16,000–20,000 lbs) receiver hitches.
- Impact of Overhangs: Truck campers with rear overhangs require a hitch extension, which adds 150 lbs or more in hardware weight and reduces the receiver’s effective tongue weight rating.
- Reserve Payload Margin: A minimum extra payload margin of 350 lbs (plus 150 lbs if using a hitch extension) is recommended to account for trailer wiring, hitch pins, safety chains, and dynamic weight shifts.
- Vehicle Performance & Safety:
- Recommended Vehicles: Heavy-duty trucks like the Ram 3500, Ford F-350/F-450, and Chevrolet Silverado 3500HD are ideal choices due to their higher payload and towing limits compared to half-ton trucks.
- Suspension Upgrades: Installing heavy-duty shocks, struts, and springs helps support the extra load, improve vehicle stability, and minimize rear-end sag.
- Driving Safety: The maximum speed while towing is 60 mph to ensure road safety and adhere to highway regulations.
- Core Feasibility & Weight Management:
Whether a truck camper can pull a travel trailer is a question many adventure enthusiasts ask when planning their next trip. We will delve into the dynamics of towing a trailer with a truck camper, discussing the prerequisites, potential challenges, and tips for a successful towing experience.
Having a truck camper on your truck has long been seen as the world’s most resourceful and efficient RV. Would you like to head to a place where only a pickup could go?
Can your truck tow it? Free check — payload, tongue weight and GVWR in about a minute Open calculator ↓ Close calculator ↑
Crow Survival · Free Tool
Can your truck tow it?
Most people check the tow rating and stop there. Payload is usually what actually runs out first — and it's the number that gets folks in trouble. This checks all three limits and tells you which one is really holding you back.
1. Your tow vehicle
Find these on the sticker inside your driver's door and in your owner's manual. Don't use the numbers from a brochure or an ad — they're for a different trim than yours.
2. What's riding with you
Everything inside the truck counts against payload — people, dogs, coolers, firewood, tools, water jugs. Be honest here. This is where most people go over.
3. The trailer
Use the trailer's GVWR, not its dry weight. Dry weight is what it left the factory at — before water, propane, dishes, and everything else you put in it.
Read this before you hook up. This tool does the math, but it can't know your exact truck. Published ratings change with cab size, engine, axle ratio, and options, so two trucks that look identical can have very different limits. Always go by the sticker inside your driver's door and your owner's manual, and weigh your real setup at a certified scale before a long trip. Being over these limits can affect braking, steering, warranty coverage, and your insurance after a crash.
Do you want to have off-road capability thanks to a four-wheel drive? Would you like to head into the wild with the barest of equipment, just you and your truck? Then, a truck camper is what you need.
While a truck camper might be fun, there is an added sense of responsibility. For starters, your camper and truck must be assembled safely.
This ensures that the correct camper and truck choices are made with factors such as truck payload, camper weight, general fit compatibility, and center of gravity.
Attaching a truck camper to your truck is a carefully thought-out process that requires you to understand your truck’s safe tolerance for the payload.
Attaching a travel trailer is pretty similar, as you have to be aware of your truck’s maximum towing capacity before you hitch a travel trailer to your vehicle.
You must ensure that your truck’s maximum towing capacity exceeds the travel trailer’s.
Towing with the Added Weight of a Truck Camper
Towing tends to add many additional factors to the necessary calculations.
For instance, not only will you need to be aware of the weight of your truck camper, you will need to know the payload and maximum towing capacity of the truck, the tongue weight of the travel trailer, and the weight of the travel trailer itself.
One thing you do not want to do is to buy a truck first, then set out to get a truck camper and a travel trailer.
This can lead to disastrous situations where you finally discover that your truck cannot pull your travel trailer, let alone with the added weight of a truck camper.
If you are interested in RVing and plan to use a travel trailer and a truck camper, you must ensure that you know the total weight of both RVs.
This helps ensure you only purchase the truck with sufficient towing capacity and payload. This is important as it might not always be possible to weigh your desired travel trailer or truck camper.
The size of your travel trailer is not necessarily limited by how much you can spend. What it is determined by is your truck’s capacity. This is why it is imperative to take the time to plan the RV rig.
If you do not desire to be hampered by limitations in regard to how much you can tow and haul, you will have to plan.
How much additional payload is required to haul a travel trailer?
This number depends on numerous factors, such as what you plan to tow and the towing equipment in use.
Generally, a truck with a camper load will require a minimum of 350 lbs of additional payload capacity to be considered a safe towing vehicle.
This number is derived from the gross vehicle weight rating minus the loaded and wet weight of the RV.
If you have a truck camper with an overhang, you will need a minimum addition of 150 lbs to the previous number.
Does the Towing Equipment’s Weight Matter?
It is essential that the towing equipment, such as the tongue, is added to any calculations done. For some reason, this is something that is overlooked.
For instance, if your truck uses a stock class 3 graded hitch and the truck camper does not need an extension for an overhang, you might have to add just an extra 50 lbs to make up for the trailer wiring, safety chains, hitch pin, coupler mount, trailer ball, mounting plate, and ball mount.
Nevertheless, if you require a more oversized hitch such as a Class 5 and an extension for the truck camper overhang, you might end up adding about 150 lbs just from the towing equipment.
Whichever way you go, you will have to subtract the towing equipment’s weight from the tongue’s available weight.
It is expected that your towing equipment will add more weight to the overall rig.
To sum it up, the tongue weight of a truck with a truck camper is derived by removing the truck’s listed GVWR from a camper’s wet and loaded weight.
Getting the Correctly Rated Tow Equipment to Pull your Travel Trailer
When it comes to towing equipment, there are five differing hitch classes. Regarding towing applications on a truck, classes 3 to 5 are the designated hitches.
This begs the question: how can one pick the right hitch to pull their travel trailer? Selecting the appropriate hitch would mean selecting one that matches the tongue weight and gross trailer weight required by both the travel trailer and the truck.
- Non-commercial full-sized pickup trucks are typically equipped at the factory with a class 3 hitch. A class 3 hitch is generally rated at a tongue weight of 800 lbs and a gross trailer weight of 8000 kg.
- Class 4 hitches typically have a gross trailer weight rating of anything from 10,000 to 12,000 lbs and a tongue weight of 1000 to 1200 lbs.
- Class 5 hitches typically have a gross trailer weight rating of 16,000 to 20,000 lbs and a tongue weight of 1000 to 1200 lbs.
How can I increase my Towing Capacity?
If you’re wondering, “How can I increase my towing capacity?” a practical solution lies in upgrading your vehicle’s suspension system.
This can be achieved by installing heavier-duty components such as shocks, struts, and springs. These improvements increase the towing capacity by supporting additional weight from a trailer and enhancing stability during the towing process.
Additionally, regular vehicle maintenance ensures optimum performance and maximizes towing capacity.
To effectively increase your towing capacity, consider investing in a robust suspension system and maintaining your vehicle in top condition.
What is the Max Towing Speed?
The maximum towing speed is critical for safety and legal adherence when pulling any load.
Regardless of whether you are towing a lightweight trailer packed with camping gear or a substantial horsebox, the maximum speed at which you can drive is 60mph.
It’s important to note that this limit is not just a safety guideline but a regulation that drivers must comply with to ensure safe road use. Additionally, all standard lane rules remain in effect during towing.
What is the Best Truck for Towing a Travel Trailer?
Determining what truck for towing a travel trailer depends on several factors, such as towing capacity, durability, and overall performance.
The Ram 3500 Heavy Duty pickup is renowned for its robust towing capacity and torque. The Ford F-450 also boasts exceptional towing capabilities.
The Chevrolet Silverado 3500HD is another excellent choice, offering advanced towing technologies. The Ford F-150 is widely recognized for its reliability and versatility in various terrains.
Meanwhile, the Chevrolet Silverado offers a comfortable ride and impressive fuel efficiency.
Lastly, the Nissan Titan XD stands out with its innovative towing features and powerful engine. Therefore, the best truck would depend on the specific needs and preferences of the user.
Frequently Asked Questions

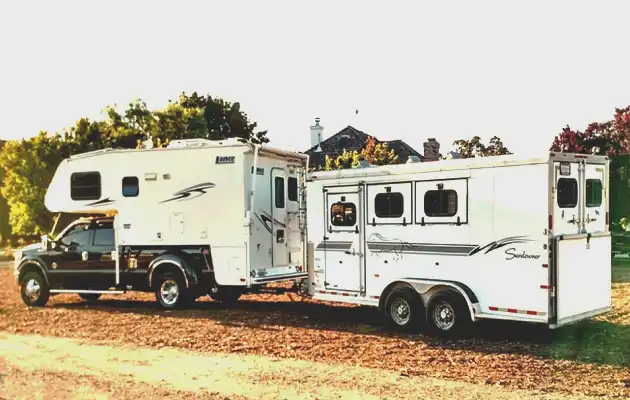

1. Can I tow a travel trailer while carrying a truck camper at the same time?
Yes, but your truck must have enough payload capacity to support the combined weight of the truck camper, passengers, gear, towing hardware, and the travel trailer’s tongue weight, while staying under its maximum towing rating.
2. Why is payload capacity more critical than towing capacity for this setup?
The entire weight of the truck camper sits directly in the truck bed, and the travel trailer places its tongue weight onto the hitch. Since both components press down on the truck’s chassis, you will almost always reach your truck’s maximum payload limit (GVWR) long before you hit its maximum towing capacity.
3. What hitch class and equipment do I need to tow a trailer with a truck camper?
While factory Class 3 hitches work for small loads, heavier setups typically require a Class 4 or Class 5 receiver hitch. If your truck camper extends past the truck bed, you will also need a commercial hitch extension, which can add up to 150 lbs of hardware and reduce the receiver’s effective tongue weight rating.
4. How do I calculate if my truck can safely haul and tow both RVs?
Subtract the loaded, wet weight of the camper, all passengers, cargo, and towing hardware from your truck’s Gross Vehicle Weight Rating (GVWR). The remaining number must be greater than the travel trailer’s tongue weight, with a recommended buffer margin of at least 350 to 500 lbs.
5. What type of truck is best for hauling a camper while towing a travel trailer?
One-ton, heavy-duty trucks such as the Ford F-350/F-450, Ram 3500, or Chevrolet Silverado 3500HD are generally required. Half-ton and many three-quarter-ton trucks lack the necessary payload capacity to safely carry a full camper and support a travel trailer’s tongue weight simultaneously.
Final Thoughts
The primary determinant is the truck’s towing capacity, which can vary substantially based on the size and model of the truck. This capacity must be compatible with the combined weight of both the camper and the travel trailer.
Therefore, careful weight considerations are essential to ensure the total weight does not exceed the truck’s towing capacity. Equally important is the loading balance of the camper and trailer.
-
Towing a travel trailer while hauling a truck camper is entirely possible, but it requires a heavy-duty truck (typically a 1-ton platform like a 3500 or F-350/F-450) to handle the extreme combined payload and towing demands.
-
Success depends on calculating all real-world weights, including wet camper weight, passengers, gear, trailer tongue weight, and hitch extensions to ensure every metric remains safely below the truck’s factory GVWR and GCWR ratings.
-
Investing in the proper hitch class (Class 4 or Class 5), utilizing heavy-duty suspension upgrades, and maintaining a strict 60 mph speed limit will ensure a safe, stable, and legal towing experience.
An even weight distribution is crucial to prevent undue strain on the truck’s rear axle, potentially leading to damage or an accident.
The braking system plays an integral role in safe towing. Depending on the weight being towed, auxiliary brakes may be necessary to ensure adequate stopping power.
It is also vital to adhere to all relevant towing regulations and to check state- or country- specific laws related to towing. Thus, while a truck camper can potentially pull a travel trailer, it must meet all these conditions for safe and legal operation.
